Sea&Sea YS-D2J Strobe

Reference: YSD2J

Condition: New product

Sea&Sea YS-D2J Strobe (only head)Depth rating: 330' / 100m Batteries : 4xAA A: 6V Ni-MH: 4.8V Color temperature : 5600K Color temperature w/diffuser : 5250K DS-TTL II function Slave function Auto power OFF function

More details

Available - 10 days

More info

Excellent night-time visibility. The illuminated control panel is ideal for night diving

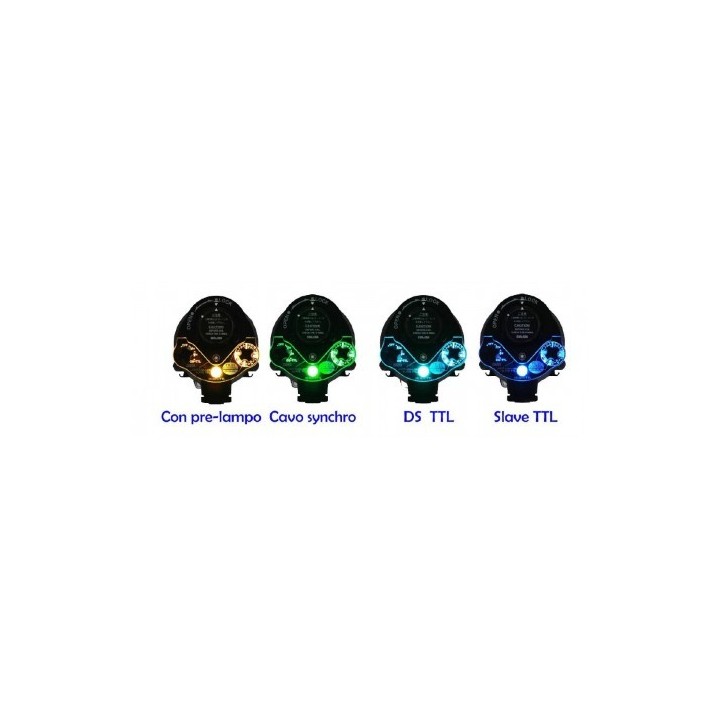

Color of illumination changes to indicate mode: aqua blue (in DS-TTL mode), blue (in slave TTL mode), orange (in manual pre-flash mode) and Green (in manual mode without pre-flash). You can check which mode the strobe is set even under pitch-black conditions.

The YS-D2J is powerful enough to illuminate a wide area, even under very bright conditions with plenty of natural sunlight. During macro photography, where subtle exposure control is required, manual mode can easily be selected and the guide number quickly adjusted as low as 1.

DS-TTL ll automatic exposure control with improved accuracy and stability

SEA&SEA’s own automatic exposure control system, DS-TTL ll, has been further improved. Tuning light emitting timing in detail and adding light emission detection function (*2), the accuracy of automatic TTL exposure has been noticeably improved. Previously, TTL photography was difficult with the lens’s aperture wide-open (maximum aperture) and images were likely to be overexposed. It is now possible to give a low powered flash so the correct exposure can be easily achieved with the YS-D2J.
(*2) When the YS-D1 strobe is fired continuously, variability of light intensity (caused by voltage differences of the main condenser) could be evident. The new function will stabilize light emission by controlling the voltage differences.

EV control function can finely tune the amount of light emitted

By controlling the actual flash light level, the strobe achieves accurate exposure compensation with EV compensation. As the exposure compensation range has improved to +/- 2.0 EV, users can concentrate on shooting even more creative images. (-2,0EV, -1.5EV, -1EV, -0.7EV, -0.3EV, +0.3EV, +0.7EV, +1EV, +1.5EV, +2.0EV).

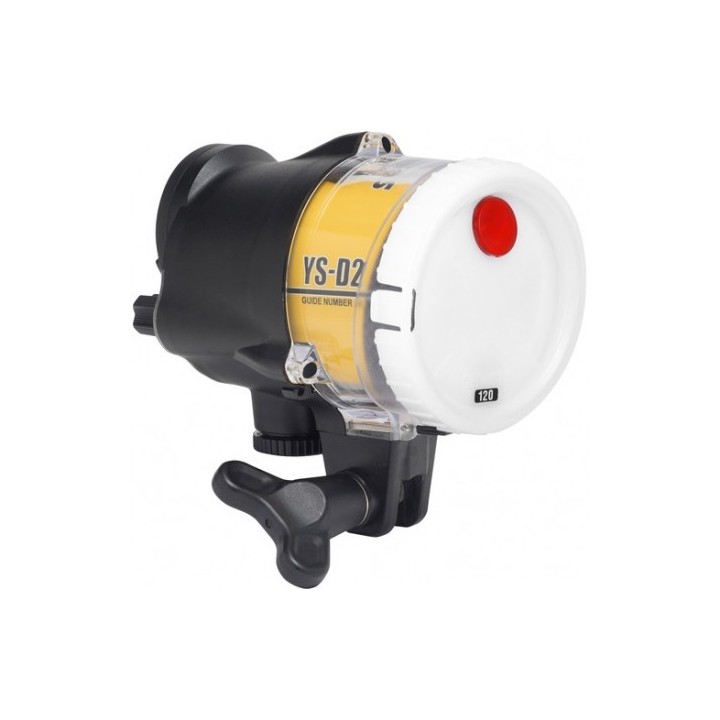

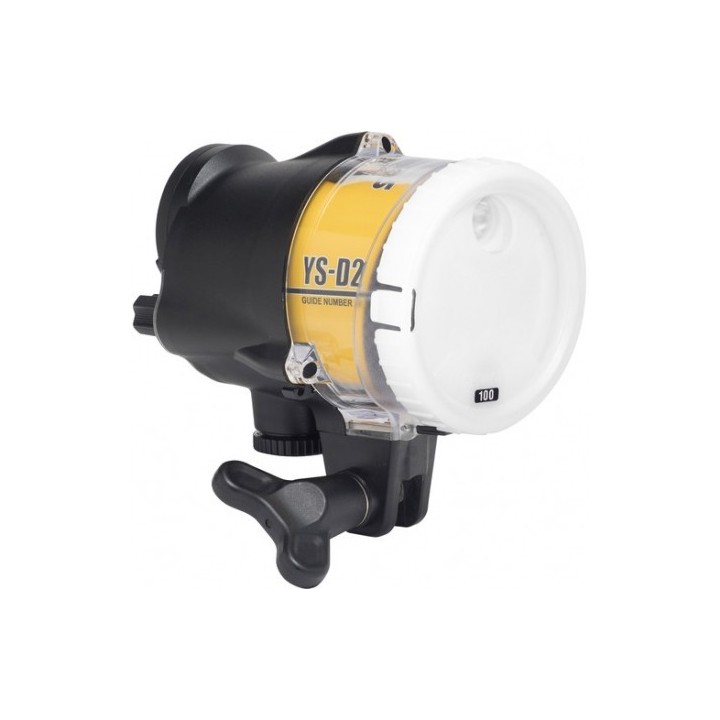

Two diffusers and red filters included with the strobe as standard

By attaching one of the included diffusers, the beam angle is increased to 100o or 120o (circular) with a soft and even light. The red target light filter helps avoid disturbing skittish creatures that are likely to react to normal light. The red filter is fitted inside the diffusers.

The target light can be adjusted in 2 steps

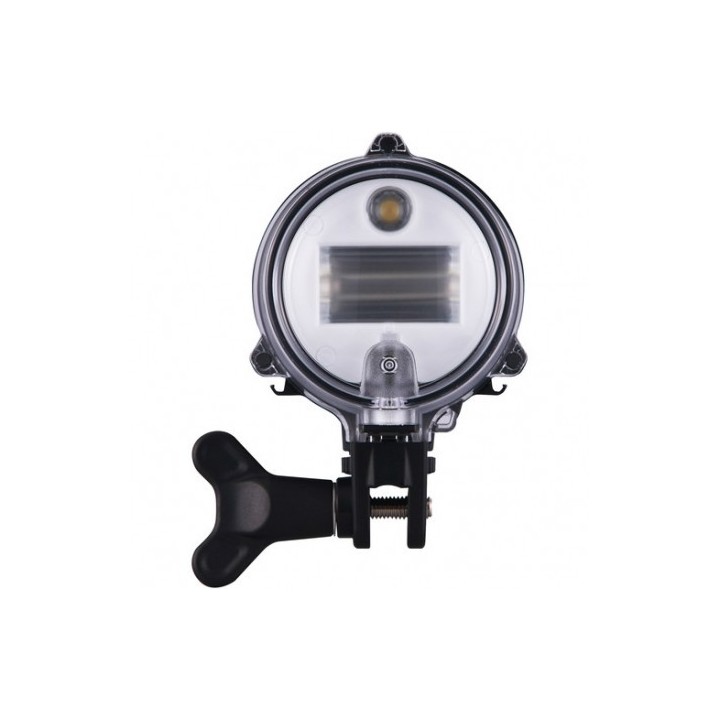

The strobe is equipped with a target light (approximately 100/300 lumen). In use (target light switch in ON position), the light will be automatically turn off when the strobe fires and will automatically turn back ON after 0.5 sec.

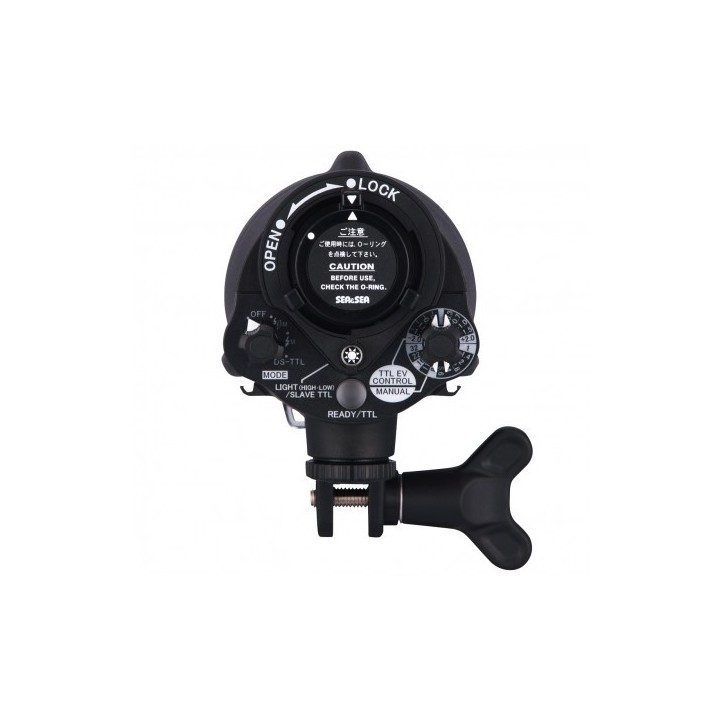

Ergonomically improved controls

Handling is greatly improved. Larger knobs and a new magnetic rotary switch help prevent controls being accidentally reset in use. With the new controls, quick operation is possible when photo opportunities suddenly appear.

Custom mode is a new innovation which allows the YS-D2J to be compatible with cameras with non-standard pre-flash settings

Some manufactures use their own pre-flash timings on their cameras. The new custom function means the YS-D2J can be compatible with cameras with non-standard pre-flash in DS-TTL and manual modes.

[ YS-D2J ]

[Guide Number (ISO 100/m) (land)] : 32, 24 (with Diffuser 100 attached), 20 (with Diffuser 120 attached)
[Beam Angle] : 80°x80° (without Diffuser), 100°x100°(Diffuser 100), 120° x 120° (Diffuser 120)
[Batteries] : 4xAA A: 6V Ni-MH: 4.8V
[Number of Flashes *1] : A: 150 Ni-MH: 200
[Recycle time (full) *2] : A: 3.0 sec. Ni-MH: 1.5 sec.
[Color temperature] : 5600K
[Color temperature w/diffuser] : 5250K
[Depth rating] : 100m / 330ft
[Dimensions (WxHxD)] （Excluding protruding part(s) and the arm holder.）: 89x133x116mm / 3.5 x 5.2 x 4.6 inches (incl. YS base but excluding protruding parts)
[Weight] : 623g / 22.0oz (w/o batteries) (inc. YS-mount and fixing bolt. Without batteries)
[Underwater weight] : Approx.+40g / 1.4oz (incl. batteries)
[Others]
Exposure control: DS-TTL II, Slave TTL, Light level control dial (GN): 1 / 1.4 / 2 / 2.8 /4 / 5.6 /8 / 11 / 16 / 22 / 32 (11 steps)
Pre-flash control: Equipped with pre-flash cancel mode
DS-TTL II function
Slave function
Auto power OFF function
Sync cord: 5-pin Sync cord/N, Fiber-Optic Cable
Over-pressure relief valve
LED target light (output is adjustable in 2 steps)
Audible charge signal

*1 Number of flashes and recycle time depends on the battery brand, temperature and frequency of use.
*2 Number of flashes and recycle time of Ni-MH batteries were tested on 2400 mAh batteries.

YS-D2J customize (customization) mode setting chart
Comparison between YS-D2J and the YS-D1
